Sopbot machine setting

After designing i go to the coep for shopbot because in vigyan ashram there is no shopbot machine.there is 2 instructor sandeep sir and apeksha madam they told us about shopbot how we operate.

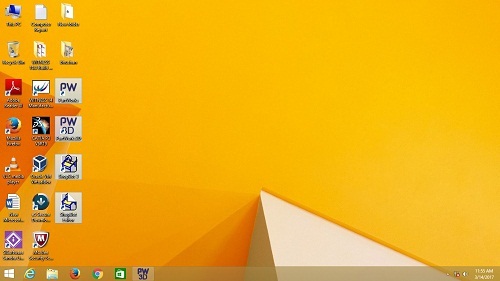

This is the software used for the setting of shopbot.partwork and shopbot editor

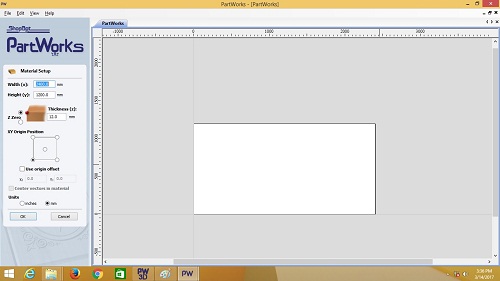

I first go to the new file then i set width and geight according with the bed or sheet of plywood. then i set the thickness of the sheet i.e 12mm.Then I again set the point at left corner for start from there.then i said ok.

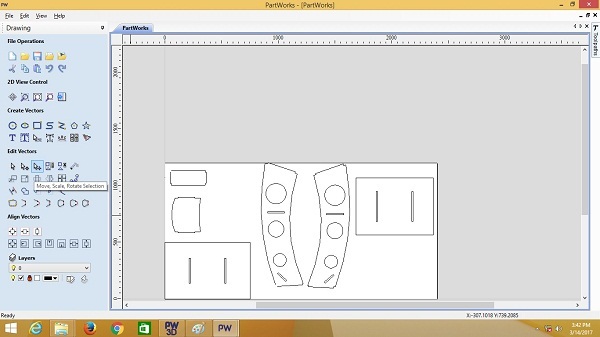

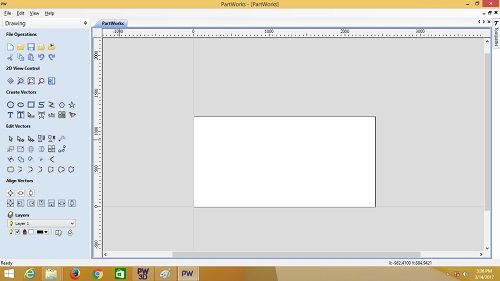

this is the main window and in this i import my file,at the left side there is tool box i use the move and rotate command

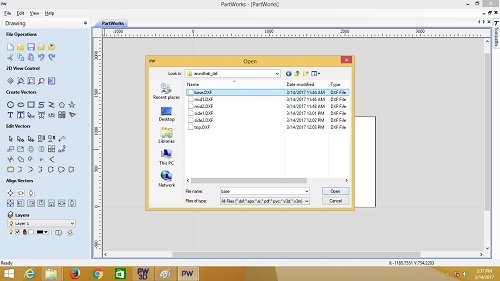

i import my file from document folder

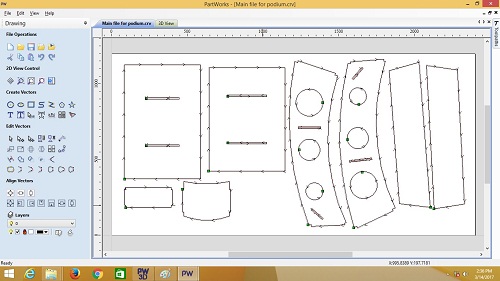

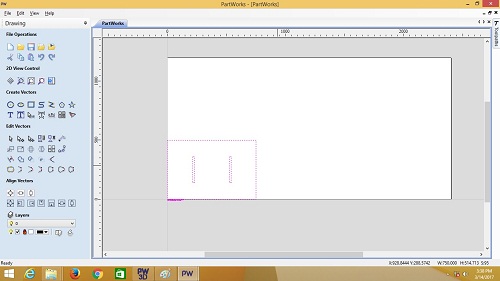

this are my all files on a single sheet i placed it randomly and there is some space so i add the file of another student there,and i use the whole sheet proprly


after that i go to the the toolpath genrator in this first i select in my design the poket part then i select the inside ,then give the thickness as 7mm. then gave profile name then calculate.it takes only 6min to cut.After this i go for outer part then i select outer side i set the thickness as 12mm.then change thje profilename.

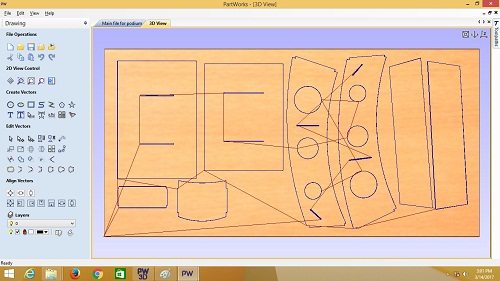

this is the toolpath of my design.

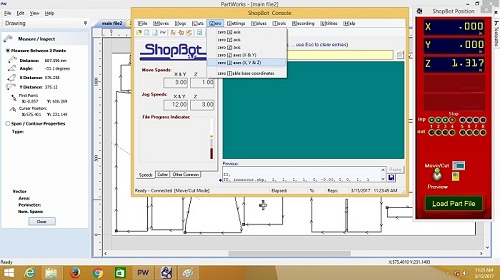

then i will go on shopbot software i set the origin

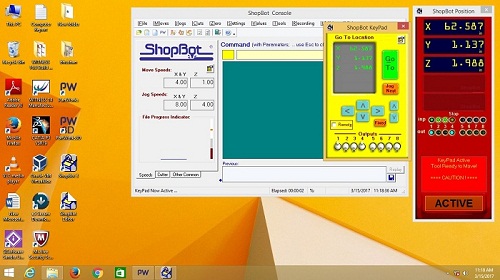

With this software i set the speed of machine but after this setting i saw towards the bed there is lot of troubleshooting so i first solve the problem then i will start the machine.


lets see the troubleshooting that i have faced.
